Charts

모은 데이터를 분석하는 한 방법
상황을 파악하고 결론을 내려 결정을 (decision making) 할 수 있도록 한다.
그러나, 데이터의 시각화에는 많은 허점이 따른다.

the same data
different axis

Pie Chart

Good to go with

frequency data for categories which should add up to 100 percent

—-
Better

side note for actual numbers and
table

—-
Bad

각 게임 장르별 사용자의 만족도 퍼센티지를 모아 놓은 파이차트는 유용하지 않다.

Bar chart

region 별 sales
대륙 별 sales
분기 별 수익률
카테고리화한 종류 별 숫자기록 (일반화)

장르 별 만족도
(우리 회사) 부서별 성취도

Histogram

ser	freq
1	100
2	88
3	159
4	201
5	250
6	250
7	254
8	288
9	356
10	380
11	430
12	450
13	433
14	543
15	540
16	570
17	450
18	433
19	543
20	690
21	640
22	720
23	777
24	720
25	880
26	900

Excel에서의 histogram

Bin	Frequency
199	3
399	7
599	9
799	5
999	2

in R . . . .

dat <- c(100, 88, 159, 201, 250, 250, 254, 288, 356, 380,
         430, 450, 433, 543, 540, 570, 450, 433, 543, 690,
         640, 720, 777, 720, 880, 900)
dat
hist(dat)
hist(dat, breaks=5)

dat.iq <- rnorm(1000, 100, 15)
head(dat.iq)
tail(dat.iq)
head(dat.iq, n=12)
tail(dat.iq, n=12)

mean(dat.iq)
sd(dat.iq)

hist(dat.iq)
hist(dat.iq, breaks=30, col='lightblue')

set.seed(101)
dat.iq <- rnorm(1000, 100, 15)
head(dat.iq)
tail(dat.iq)
head(dat.iq, n=12)
tail(dat.iq, n=12)

mean(dat.iq)
sd(dat.iq)

hist(dat.iq)
hist(dat.iq, breaks=30, col='lightblue')

Scatter plot

hist(mtcars$hp)

                     mpg cyl  disp  hp drat    wt  qsec vs am gear carb
Mazda RX4           21.0   6 160.0 110 3.90 2.620 16.46  0  1    4    4
Mazda RX4 Wag       21.0   6 160.0 110 3.90 2.875 17.02  0  1    4    4
Datsun 710          22.8   4 108.0  93 3.85 2.320 18.61  1  1    4    1
Hornet 4 Drive      21.4   6 258.0 110 3.08 3.215 19.44  1  0    3    1
Hornet Sportabout   18.7   8 360.0 175 3.15 3.440 17.02  0  0    3    2
Valiant             18.1   6 225.0 105 2.76 3.460 20.22  1  0    3    1
Duster 360          14.3   8 360.0 245 3.21 3.570 15.84  0  0    3    4
Merc 240D           24.4   4 146.7  62 3.69 3.190 20.00  1  0    4    2
Merc 230            22.8   4 140.8  95 3.92 3.150 22.90  1  0    4    2
Merc 280            19.2   6 167.6 123 3.92 3.440 18.30  1  0    4    4
Merc 280C           17.8   6 167.6 123 3.92 3.440 18.90  1  0    4    4
Merc 450SE          16.4   8 275.8 180 3.07 4.070 17.40  0  0    3    3
Merc 450SL          17.3   8 275.8 180 3.07 3.730 17.60  0  0    3    3
Merc 450SLC         15.2   8 275.8 180 3.07 3.780 18.00  0  0    3    3
Cadillac Fleetwood  10.4   8 472.0 205 2.93 5.250 17.98  0  0    3    4
Lincoln Continental 10.4   8 460.0 215 3.00 5.424 17.82  0  0    3    4
Chrysler Imperial   14.7   8 440.0 230 3.23 5.345 17.42  0  0    3    4
Fiat 128            32.4   4  78.7  66 4.08 2.200 19.47  1  1    4    1
Honda Civic         30.4   4  75.7  52 4.93 1.615 18.52  1  1    4    2
Toyota Corolla      33.9   4  71.1  65 4.22 1.835 19.90  1  1    4    1
Toyota Corona       21.5   4 120.1  97 3.70 2.465 20.01  1  0    3    1
Dodge Challenger    15.5   8 318.0 150 2.76 3.520 16.87  0  0    3    2
AMC Javelin         15.2   8 304.0 150 3.15 3.435 17.30  0  0    3    2
Camaro Z28          13.3   8 350.0 245 3.73 3.840 15.41  0  0    3    4
Pontiac Firebird    19.2   8 400.0 175 3.08 3.845 17.05  0  0    3    2
Fiat X1-9           27.3   4  79.0  66 4.08 1.935 18.90  1  1    4    1
Porsche 914-2       26.0   4 120.3  91 4.43 2.140 16.70  0  1    5    2
Lotus Europa        30.4   4  95.1 113 3.77 1.513 16.90  1  1    5    2
Ford Pantera L      15.8   8 351.0 264 4.22 3.170 14.50  0  1    5    4
Ferrari Dino        19.7   6 145.0 175 3.62 2.770 15.50  0  1    5    6
Maserati Bora       15.0   8 301.0 335 3.54 3.570 14.60  0  1    5    8
Volvo 142E          21.4   4 121.0 109 4.11 2.780 18.60  1  1    4    2

# Simple Scatterplot
attach(mtcars)
plot(wt, mpg, main="Scatterplot Example",
   xlab="Car Weight ", ylab="Miles Per Gallon ",
   pch=19)

explanatory (설명) variable at x axis
response (반응) at y axis

But, it does mean no causal relationship between the two variables. Association between two does not guarantee a causal relationship.

Drawing a line among the data.

# Add fit lines
abline(lm(mpg~wt), col="red") # regression line (y~x)

Outlier에 대한 주의

Presentation

For a very good example, see
https://www.gapminder.org/answers/how-does-income-relate-to-life-expectancy/

Life expectancy data: life.exp.csv

Histogram skewedness

####
# left-skewed distribution
# 1.
set.seed(1)
data <- rbeta(500, shape1 = 10, shape2 = 2)
hist(data, probability = TRUE,
     main = "Histogram with Left-skewed data",
     xlab = "Value", ylab = "Density",
     col = "lightblue", border = "white")

# 2.
# install.packages("fitdistrplus")
library(fitdistrplus)

fit <- fitdist(data, "beta")
alpha_est <- fit$estimate["shape1"]
beta_est <- fit$estimate["shape2"]

# 3.
curve(dbeta(x, shape1 = alpha_est, shape2 = beta_est),
      add = TRUE, col = "red", lwd = 2)

set.seed(1)
data <- rbeta(500, shape1 = 10, shape2 = 10)
hist(data, probability = TRUE,
     main = "Histogram with Normal Distribution Data",
     xlab = "Value", ylab = "Density",
     col = "lightblue", border = "white")

# 2.
# install.packages("fitdistrplus")
library(fitdistrplus)

fit <- fitdist(data, "beta")
alpha_est <- fit$estimate["shape1"]
beta_est <- fit$estimate["shape2"]

# 3.
curve(dbeta(x, shape1 = alpha_est, shape2 = beta_est),
      add = TRUE, col = "red", lwd = 2)

##
# right-skewed distribution
# 1.
set.seed(1)
data <- rbeta(500, shape1 = 2, shape2 = 10)
hist(data, probability = TRUE,
     main = "Histogram with Right-skewed Distribution",
     xlab = "Value", ylab = "Density",
     col = "lightblue", border = "white")

# install.packages("fitdistrplus")
library(fitdistrplus)

fit <- fitdist(data, "beta")
alpha_est <- fit$estimate["shape1"]
beta_est <- fit$estimate["shape2"]

#
curve(dbeta(x, shape1 = alpha_est, shape2 = beta_est),
      add = TRUE, col = "red", lwd = 2)

Histogram Modality

Unimodal

### unimodal data
set.seed(1)
d.1 <- rnorm(500, 10, 2)
hist(d.1, breaks = 30, probability = T,
     main = "Hist with Unimodal distrib",
     xlab = "Value", ylab = "Density",
     col = "lightblue", border = "black")
lines(density(d.1),
      col = "darkred", lwd = 2)

Bimodal distribution

### bimodal data
set.seed(1)
d.1 <- rnorm(500, 10, 2)
d.2 <- rnorm(500, 20, 2)
d.all <- c(d.1, d.2)
hist(d.all, breaks = 30, probability = T,
     main = "Hist with bimodal distrib",
     xlab = "Value", ylab = "Density",
     col = "lightblue", border = "black")
lines(density(d.all),
      col = "darkred", lwd = 2)

### multi-modal data
# Parameters for the first normal distribution (Mode 1)
m.1 <- 50
sd.1 <- 5

# Parameters for the second normal distribution (Mode 2)
m.2 <- 100
sd.2 <- 15

m.3 <- 160
sd.3 <- 6

# Mixing proportion for Mode 1
prop.1 <- 0.3
# Mixing proportion for Mode 2
prop.2 <- 0.6 # This is 1 - prop1
# Mixing proportion for Mode 2
prop.3 <- 1.0 # This is 1 - prop1

# Number of samples to generate
n.sam <- 1000

# Create an empty vector to store the combined samples

mm.dist <- numeric(n.sam)
set.seed(1)
for (i in 1:n.sam) {
  # Randomly choose which distribution to sample from
  tmp <- runif(1)
  if (tmp < prop.1) {
    mm.dist[i] <- rnorm(1, mean = m.1, sd = sd.1)
  } else if (tmp < prop.2) {
    mm.dist[i] <- rnorm(1, mean = m.2, sd = sd.2)
  } else {
    mm.dist[i] <- rnorm(1, mean = m.3, sd = sd.3)
  }

}

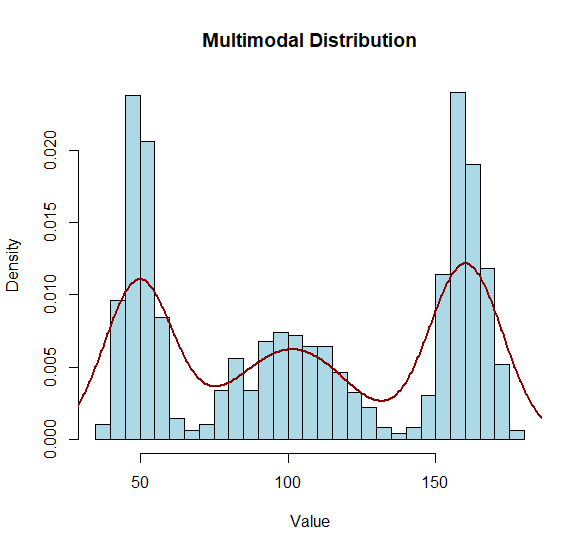

hist(mm.dist, breaks = 30,
     main = "Multimodal Distribution",
     xlab = "Value", ylab = "Density",
     freq = FALSE, probability = T,
     col = "lightblue", border = "black")
lines(density(mm.dist),
      col = "darkred", lwd = 2)

box plot

# Boxplot of MPG by Car Cylinders
boxplot(mpg~cyl,data=mtcars,
    main="Car Milage Data",
    xlab="Number of Cylinders",
    ylab="Miles Per Gallon")
