You should read correlation, regression, multiple regression, and deriviation of a and b in a simple regression as well.
Covariance
Variance and Covariance
\begin{eqnarray}
\text{Var (X, X)} & = & \displaystyle \frac {SS}{df} \nonumber \\
& = & \displaystyle \frac {\sum{(\text{error})^2}}{n-1} \nonumber \\
& = & \displaystyle \frac {\sum_{i=1}^{n} {(X_i-\overline{X}}) (X_i-\overline{X}) } {n-1} \\
\text{Cov (X, Y)} & = & \displaystyle \frac {SP}{df} \nonumber \\
& = & \displaystyle \frac {\sum{(\text{product of errors from each mean})}}{n-1} \nonumber \\
& = & \displaystyle \frac {\sum_{i=1}^{n} {(X_i-\overline{X}}) (Y_i-\overline{Y}) } {n-1} \\
\end{eqnarray}
Note that
- covariance value can be negative.
- covariance value can be affected by the measurement unit
- e.g. Y = 억단위 투자금 vs Y = 원단위 투자금
- 큰 의미 없이 covariance 값이 달라진다.
- 이를 해결하기 위해서
- covariance value / each x and y unit measurement (sd)
Correlation
\begin{eqnarray} \text{correlation, r} & = & \frac {\text{Cov (X,Y)}} {sd(X) * sd(Y)} \\ & = & \frac {\text{SP (X,Y)} }{ \sqrt{\text{SS.x}*\text{SS.y}}} \nonumber \end{eqnarray}
F-test (anova)
for reminding
\begin{eqnarray*}
\text{F} & = & \frac {\text{MS}_\text{between group}} {\text{MS}_\text{within group}} \\
& = & \frac {\text{Difference due to the treatment (IV) } }{ \text{Difference due to random error} } \\
& = & \frac {\text{Difference explained by IV } }{ \text{Difference remained random} } \\
\text{R}^\text{2} & = & \frac {\text{SS}_\text{between}} {\text{SS}_\text{total} } \hfill \\
\end{eqnarray*}
Check in R
# data prep rnorm2 <- function(n,mean,sd){ mean+sd*scale(rnorm(n)) } set.seed(191) n.x <- 40 m.x <- 100 s.x <- 10 x <- rnorm2(n.x, m.x, s.x) x # y has a linear relationship with x a <- 2 b <- -10 n.y <- n.x re <- rnorm(n.y, 0, 20) y <- (a*x) + b + re y # covariance x and y cov(x,y) sd(x) sd(y) # correlation coefficient cov(x,y)/(sd(x)*sd(y)) cor(x,y) n.x df.x <- n.x-1 df.y <- df.x sp.xy <- cov(x,y) * df.x # 혹은 아래처럼 구할 수 있다 sp.xy2 <- sum((x-m.x)*(y-m.y)) sp.xy == sp.xy2 ss.x <- var(x) * df.x ss.y <- var(y) * df.y sp.xy/sqrt(ss.x*ss.y) cor(x,y)
Check in R: output
> > # data prep > rnorm2 <- function(n,mean,sd){ mean+sd*scale(rnorm(n)) } > set.seed(191) > n.x <- 40 > m.x <- 100 > s.x <- 10 > x <- rnorm2(n.x, m.x, s.x) > x [,1] [1,] 99.35817 [2,] 107.72169 [3,] 111.04574 [4,] 100.65968 [5,] 103.85350 [6,] 122.91296 [7,] 102.07927 [8,] 96.92756 [9,] 115.96195 [10,] 94.24901 [11,] 97.30033 [12,] 110.23739 [13,] 114.73077 [14,] 102.28326 [15,] 112.89297 [16,] 96.12475 [17,] 100.23641 [18,] 88.18567 [19,] 94.75283 [20,] 110.71928 [21,] 105.81396 [22,] 99.89274 [23,] 104.14215 [24,] 103.82149 [25,] 97.85588 [26,] 104.26732 [27,] 90.79210 [28,] 86.64193 [29,] 91.08626 [30,] 77.77150 [31,] 116.52461 [32,] 99.52034 [33,] 85.34661 [34,] 96.14854 [35,] 100.53925 [36,] 95.45190 [37,] 77.35589 [38,] 100.05830 [39,] 92.06457 [40,] 92.67148 attr(,"scaled:center") [1] -0.08680858 attr(,"scaled:scale") [1] 1.039345 > > # y has a linear relationship with x > a <- 2 > b <- -10 > n.y <- n.x > re <- rnorm(n.y, 0, 20) > y <- (a*x) + b + re > y [,1] [1,] 175.7367 [2,] 200.0202 [3,] 241.0439 [4,] 166.0401 [5,] 195.5682 [6,] 210.8411 [7,] 181.9459 [8,] 193.8544 [9,] 225.4417 [10,] 182.5276 [11,] 194.5656 [12,] 232.4421 [13,] 255.3070 [14,] 209.0313 [15,] 219.1602 [16,] 181.7819 [17,] 214.3124 [18,] 187.2961 [19,] 207.3581 [20,] 235.0318 [21,] 199.2244 [22,] 208.1031 [23,] 182.2575 [24,] 201.4683 [25,] 169.6124 [26,] 173.7941 [27,] 161.0332 [28,] 152.1292 [29,] 153.4874 [30,] 147.7652 [31,] 189.2685 [32,] 188.5691 [33,] 155.5620 [34,] 172.8731 [35,] 184.9119 [36,] 183.3182 [37,] 119.8266 [38,] 162.6349 [39,] 170.0872 [40,] 150.7684 attr(,"scaled:center") [1] -0.08680858 attr(,"scaled:scale") [1] 1.039345 > cov(x,y) [,1] [1,] 222.3867 > sd(x) [1] 10 > sd(y) [1] 28.35979 > cov(x,y)/(sd(x)*sd(y)) [,1] [1,] 0.7841619 > cor(x,y) [,1] [1,] 0.7841619 > > n.x [1] 40 > df.x <- n.x-1 > df.y <- df.x > sp.xy <- cov(x,y) * df.x > ss.x <- var(x) * df.x > ss.y <- var(y) * df.y > sp.xy/sqrt(ss.x*ss.y) [,1] [1,] 0.7841619 > cor(x,y) [,1] [1,] 0.7841619 > >
code

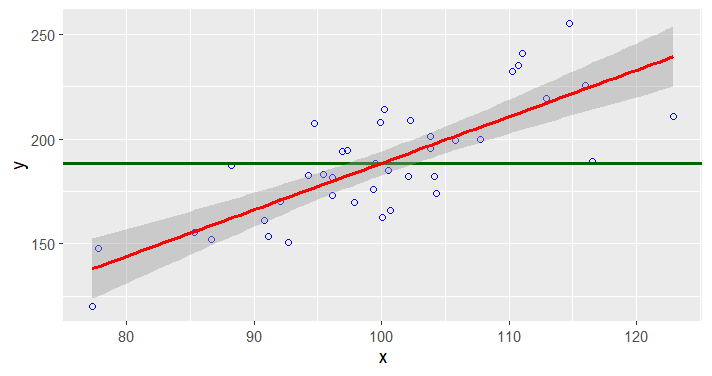

rnorm2 <- function(n,mean,sd){ mean+sd*scale(rnorm(n)) } set.seed(191) n.x <- 40 m.x <- 100 s.x <- 10 x <- rnorm2(n.x, m.x, s.x) x ss.x <- sum((m.x - x)^2) df.x <- n.x - 1 ss.x/df.x var(x) # linear relationship a <- 2 b <- -10 n.y <- n.x re <- rnorm(n.y, 0, 20) y <- (a*x) + b + re y m.y <- mean(y) df.y <- n.y - 1 ss.y <- sum((y-m.y)^2) ss.y/df.y var(y) # prod <- (x-m.x)*(y-m.y) sp <- sum(prod) sp/df.y # covariance 값 cov(x,y) # covariance 펑션 s.x <- sd(x) # x변인에 대한 standard deviation 값 s.y <- sd(y) # y (sp/df.y)/(s.x*s.y) # correlation 값 cor(x,y) # correlation 펑션 df.y df.x cov(x,y)/(s.x*s.y) # covariance를 각각의 sd값을 곱한여 나눠 준 값이 r (sp/df.y)/sqrt((ss.x/df.x)*(ss.y/df.y)) # 분모 분자에서 n-1을 제거하고 보면 sp/sqrt(ss.x*ss.y) cor(x,y) # graph with ggplot2 df <- data.frame(x,y) library(ggplot2) ggplot(data=df, aes(x,y)) + geom_point(color="blue", size=1.5, pch=1.5) + geom_hline(aes(yintercept=mean(y)), size=1, color="darkgreen") + stat_smooth(method = "lm", formula = y ~ x, geom = "smooth", color="red", size=1) # note that the red line is y.hat = a + bx, # where error value y.hat - y is minimized lm.df <- lm(y~x, data = df) summary(lm.df) a <- summary(lm.df)$coefficients[1] b <- summary(lm.df)$coefficients[2] a b # how to derive a and b # how to derive coefficient values # see wiki doc at # http://commres.net/wiki/deriviation_of_a_and_b_in_a_simple_regression b2 <- sp/ss.x b3 <- cov(x,y)/var(x,x) # b2 == b3 # m.y = a + (b*m.x) 이므로 a2 <- m.y - (b2*m.x) b3 b2 b a2 a # # reg, res, total error # y.hat <- a+(b*x) y.hat2 <- predict(lm.df) head(y) head(y.hat) m.y tmp <- data.frame(x, y, y.hat) head(tmp) plot(x,y) # 원래 데이터 plot(x,y.hat) # 리그레션라인 예측선 plot(x,tmp$m.y) # 평균 예측선 error <- y - y.hat explained <- y.hat - m.y tmp2 <- data.frame(tmp, explained, error) head(tmp2) head(y.hat == explained + m.y) head(y == explained + error + m.y) # note the below plot(error) hist(error) plot(x,error) cor(x,error) ################ plot(x,explained) cor(x,explained) plot(x,(explained+m.y)) cor(x,(explained+m.y)) head(explained+error) plot(x,(explained+error)) head(explained+error+m.y == y) plot(x,(explained+error+m.y)) cor(x,(explained+error)) cor(x,(explained+error+m.y)) cor(x,y) # see this also round(cor(tmp2),3) ############### # sum of square values ss.res <- sum(error^2) ss.reg <- sum(explained^2) ss.y ss.res ss.reg ss.res + ss.reg # degrees of freedom values k <- 2 # number of parameters df.reg <- k - 1 # number of parameter estimation a and b (slope) df.res <- n - df.reg - 1 ms.res <- ss.res/df.res ms.reg <- ss.reg/df.reg ss.reg df.reg ms.reg ss.res df.res ms.res # r square ss.y ss.reg r.sq <- ss.reg/ss.y r.sq # 위의 r.sq 값이 충분히 컸는지를 알아보는 것은 # ss.reg가 충분히 컸는지를 알아보는 것 # 이는 IV, x가 y를 설명하는데 충분히 기여했는지 # 테스트하는 것. 이는 F-test를 이용해서 하게 된다 # F = MS.bet / MS.within # regression의 경우는 F = MS.reg / MS.res f.cal <- ms.reg/ms.res f.cal pf(f.cal, df.reg, df.res, lower.tail = F) # check anova test anova(lm.df) summary(lm.df) # standard error for b coefficient # b coeffficient 값은 estimation # n.y 개의 데이터에서 구한 coefficient값 b는 # 실제 x, y 모집단을 대표하는 b값은 위의 # estimation에서 standard error값을 구간으로 갖는 # 범위일 것. res <- resid(lm.df) data.frame(head(res)) data.frame(head(error)) se.b <- sqrt(ms.res/ss.x) se.b # as x increased by 1 unit, y would increase b +- 2se.b b + c(-2*se.b, 2*se.b) b # to be exact t.crit <- qt(.975, df.res) t.crit b + c(-t.crit*se.b, t.crit*se.b) b t.cal <- lm.df$coefficients[2]/se.b t.cal pt(t.cal, df.res, lower.tail = F)*2 pf(f.cal, df.reg, df.res, lower.tail = F) # see also t.cal t.cal^2 f.cal
code output
> rnorm2 <- function(n,mean,sd){ mean+sd*scale(rnorm(n)) } > set.seed(191) > n.x <- 40 > m.x <- 100 > s.x <- 10 > x <- rnorm2(n.x, m.x, s.x) > x [,1] [1,] 99.35817 [2,] 107.72169 [3,] 111.04574 [4,] 100.65968 [5,] 103.85350 [6,] 122.91296 [7,] 102.07927 [8,] 96.92756 [9,] 115.96195 [10,] 94.24901 [11,] 97.30033 [12,] 110.23739 [13,] 114.73077 [14,] 102.28326 [15,] 112.89297 [16,] 96.12475 [17,] 100.23641 [18,] 88.18567 [19,] 94.75283 [20,] 110.71928 [21,] 105.81396 [22,] 99.89274 [23,] 104.14215 [24,] 103.82149 [25,] 97.85588 [26,] 104.26732 [27,] 90.79210 [28,] 86.64193 [29,] 91.08626 [30,] 77.77150 [31,] 116.52461 [32,] 99.52034 [33,] 85.34661 [34,] 96.14854 [35,] 100.53925 [36,] 95.45190 [37,] 77.35589 [38,] 100.05830 [39,] 92.06457 [40,] 92.67148 attr(,"scaled:center") [1] -0.08680858 attr(,"scaled:scale") [1] 1.039345 > ss.x <- sum((m.x - x)^2) > df.x <- n.x - 1 > ss.x/df.x [1] 100 > var(x) [,1] [1,] 100 > > # linear relationship > a <- 2 > b <- -10 > n.y <- n.x > re <- rnorm(n.y, 0, 20) > y <- (a*x) + b + re > y [,1] [1,] 175.7367 [2,] 200.0202 [3,] 241.0439 [4,] 166.0401 [5,] 195.5682 [6,] 210.8411 [7,] 181.9459 [8,] 193.8544 [9,] 225.4417 [10,] 182.5276 [11,] 194.5656 [12,] 232.4421 [13,] 255.3070 [14,] 209.0313 [15,] 219.1602 [16,] 181.7819 [17,] 214.3124 [18,] 187.2961 [19,] 207.3581 [20,] 235.0318 [21,] 199.2244 [22,] 208.1031 [23,] 182.2575 [24,] 201.4683 [25,] 169.6124 [26,] 173.7941 [27,] 161.0332 [28,] 152.1292 [29,] 153.4874 [30,] 147.7652 [31,] 189.2685 [32,] 188.5691 [33,] 155.5620 [34,] 172.8731 [35,] 184.9119 [36,] 183.3182 [37,] 119.8266 [38,] 162.6349 [39,] 170.0872 [40,] 150.7684 attr(,"scaled:center") [1] -0.08680858 attr(,"scaled:scale") [1] 1.039345 > > m.y <- mean(y) > df.y <- n.y - 1 > ss.y <- sum((y-m.y)^2) > ss.y/df.y [1] 804.2779 > var(y) [,1] [1,] 804.2779 > > # > prod <- (x-m.x)*(y-m.y) > sp <- sum(prod) > sp/df.y # covariance 값 [1] 222.3867 > cov(x,y) # covariance 펑션 [,1] [1,] 222.3867 > > s.x <- sd(x) # x변인에 대한 standard deviation 값 > s.y <- sd(y) # y > (sp/df.y)/(s.x*s.y) # correlation 값 [1] 0.7841619 > cor(x,y) # correlation 펑션 [,1] [1,] 0.7841619 > > df.y [1] 39 > df.x [1] 39 > > cov(x,y)/(s.x*s.y) [,1] [1,] 0.7841619 > # covariance를 각각의 sd값을 곱한여 나눠 준 값이 r > (sp/df.y)/sqrt((ss.x/df.x)*(ss.y/df.y)) [1] 0.7841619 > # 분모 분자에서 n-1을 제거하고 보면 > sp/sqrt(ss.x*ss.y) [1] 0.7841619 > cor(x,y) [,1] [1,] 0.7841619 > > # graph with ggplot2 > df <- data.frame(x,y) > library(ggplot2) > ggplot(data=df, aes(x,y)) + + geom_point(color="blue", size=1.5, pch=1.5) + + geom_hline(aes(yintercept=mean(y)), size=1, color="darkgreen") + + stat_smooth(method = "lm", + formula = y ~ x, + geom = "smooth", color="red", size=1) > > # note that the red line is y.hat = a + bx, > # where error value y.hat - y is minimized > > lm.df <- lm(y~x, data = df) > summary(lm.df) Call: lm(formula = y ~ x, data = df) Residuals: Min 1Q Median 3Q Max -35.880 -11.932 -0.458 12.199 34.148 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -33.9867 28.6879 -1.185 0.243 x 2.2239 0.2855 7.790 2.16e-09 *** --- Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1 Residual standard error: 17.83 on 38 degrees of freedom Multiple R-squared: 0.6149, Adjusted R-squared: 0.6048 F-statistic: 60.68 on 1 and 38 DF, p-value: 2.157e-09 > a <- summary(lm.df)$coefficients[1] > b <- summary(lm.df)$coefficients[2] > a [1] -33.98667 > b [1] 2.223867 > # how to derive a and b > # how to derive coefficient values > # see wiki doc at > # http://commres.net/wiki/deriviation_of_a_and_b_in_a_simple_regression > b2 <- sp/ss.x > b3 <- cov(x,y)/var(x,x) # b2 == b3 > # m.y = a + (b*m.x) 이므로 > a2 <- m.y - (b2*m.x) > > b3 [,1] [1,] 2.223867 > b2 [1] 2.223867 > b [1] 2.223867 > > a2 [1] -33.98667 > a [1] -33.98667 > > # > # reg, res, total error > # > y.hat <- a+(b*x) > y.hat2 <- predict(lm.df) > head(y) [,1] [1,] 175.7367 [2,] 200.0202 [3,] 241.0439 [4,] 166.0401 [5,] 195.5682 [6,] 210.8411 > head(y.hat) [,1] [1,] 186.9727 [2,] 205.5720 [3,] 212.9643 [4,] 189.8671 [5,] 196.9697 [6,] 239.3554 > m.y [1] 188.4 > > tmp <- data.frame(x, y, y.hat) > head(tmp) x y y.hat 1 99.35817 175.7367 186.9727 2 107.72169 200.0202 205.5720 3 111.04574 241.0439 212.9643 4 100.65968 166.0401 189.8671 5 103.85350 195.5682 196.9697 6 122.91296 210.8411 239.3554 > plot(x,y) # 원래 데이터 > plot(x,y.hat) # 리그레션라인 예측선 > plot(x,tmp$m.y) # 평균 예측선 > > error <- y - y.hat > explained <- y.hat - m.y > tmp2 <- data.frame(tmp, explained, error) > head(tmp2) x y y.hat explained error 1 99.35817 175.7367 186.9727 -1.427352 -11.235956 2 107.72169 200.0202 205.5720 17.172003 -5.551819 3 111.04574 241.0439 212.9643 24.564266 28.079646 4 100.65968 166.0401 189.8671 1.467035 -23.826982 5 103.85350 195.5682 196.9697 8.569671 -1.401474 6 122.91296 210.8411 239.3554 50.955365 -28.514250 > > head(y.hat == explained + m.y) [,1] [1,] TRUE [2,] TRUE [3,] TRUE [4,] TRUE [5,] TRUE [6,] TRUE > head(y == explained + error + m.y) [,1] [1,] TRUE [2,] TRUE [3,] TRUE [4,] TRUE [5,] TRUE [6,] TRUE > > # note the below > plot(error) > hist(error) > plot(x,error) > cor(x,error) [,1] [1,] 7.981058e-17 > ################ > plot(x,explained) > cor(x,explained) [,1] [1,] 1 > plot(x,(explained+m.y)) > cor(x,(explained+m.y)) [,1] [1,] 1 > > head(explained+error) [,1] [1,] -12.663308 [2,] 11.620185 [3,] 52.643911 [4,] -22.359948 [5,] 7.168197 [6,] 22.441115 > plot(x,(explained+error)) > head(explained+error+m.y == y) [,1] [1,] TRUE [2,] TRUE [3,] TRUE [4,] TRUE [5,] TRUE [6,] TRUE > plot(x,(explained+error+m.y)) > > cor(x,(explained+error)) [,1] [1,] 0.7841619 > cor(x,(explained+error+m.y)) [,1] [1,] 0.7841619 > cor(x,y) [,1] [1,] 0.7841619 > # see this also > round(cor(tmp2),3) x y y.hat explained error x 1.000 0.784 1.000 1.000 0.000 y 0.784 1.000 0.784 0.784 0.621 y.hat 1.000 0.784 1.000 1.000 0.000 explained 1.000 0.784 1.000 1.000 0.000 error 0.000 0.621 0.000 0.000 1.000 > ############### > > # sum of square values > ss.res <- sum(error^2) > ss.reg <- sum(explained^2) > ss.y [1] 31366.84 > ss.res [1] 12079.06 > ss.reg [1] 19287.78 > ss.res + ss.reg [1] 31366.84 > > # degrees of freedom values > k <- 2 # number of parameters > df.reg <- k - 1 # number of parameter estimation a and b (slope) > df.res <- n - df.reg - 1 > ms.res <- ss.res/df.res > ms.reg <- ss.reg/df.reg > > ss.reg [1] 19287.78 > df.reg [1] 1 > ms.reg [1] 19287.78 > > ss.res [1] 12079.06 > df.res [1] 38 > ms.res [1] 317.87 > > # r square > ss.y [1] 31366.84 > ss.reg [1] 19287.78 > r.sq <- ss.reg/ss.y > r.sq [1] 0.6149098 > # 위의 r.sq 값이 충분히 컸는지를 알아보는 것은 > # ss.reg가 충분히 컸는지를 알아보는 것 > # 이는 IV, x가 y를 설명하는데 충분히 기여했는지 > # 테스트하는 것. 이는 F-test를 이용해서 하게 된다 > # F = MS.bet / MS.within > # regression의 경우는 F = MS.reg / MS.res > f.cal <- ms.reg/ms.res > f.cal [1] 60.67819 > pf(f.cal, df.reg, df.res, lower.tail = F) [1] 2.157284e-09 > # check anova test > anova(lm.df) Analysis of Variance Table Response: y Df Sum Sq Mean Sq F value Pr(>F) x 1 19288 19287.8 60.678 2.157e-09 *** Residuals 38 12079 317.9 --- Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1 > summary(lm.df) Call: lm(formula = y ~ x, data = df) Residuals: Min 1Q Median 3Q Max -35.880 -11.932 -0.458 12.199 34.148 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) -33.9867 28.6879 -1.185 0.243 x 2.2239 0.2855 7.790 2.16e-09 *** --- Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1 Residual standard error: 17.83 on 38 degrees of freedom Multiple R-squared: 0.6149, Adjusted R-squared: 0.6048 F-statistic: 60.68 on 1 and 38 DF, p-value: 2.157e-09 > > # standard error for b coefficient > # b coeffficient 값은 estimation > # n.y 개의 데이터에서 구한 coefficient값 b는 > # 실제 x, y 모집단을 대표하는 b값은 위의 > # estimation에서 standard error값을 구간으로 갖는 > # 범위일 것. > > res <- resid(lm.df) > data.frame(head(res)) head.res. 1 -11.235956 2 -5.551819 3 28.079646 4 -23.826982 5 -1.401474 6 -28.514250 > data.frame(head(error)) head.error. 1 -11.235956 2 -5.551819 3 28.079646 4 -23.826982 5 -1.401474 6 -28.514250 > se.b <- sqrt(ms.res/ss.x) > se.b [1] 0.285491 > # as x increased by 1 unit, y would increase b +- 2se.b > b + c(-2*se.b, 2*se.b) [1] 1.652885 2.794849 > b [1] 2.223867 > > # to be exact > t.crit <- qt(.975, df.res) > t.crit [1] 2.024394 > b + c(-t.crit*se.b, t.crit*se.b) [1] 1.645921 2.801813 > b [1] 2.223867 > > t.cal <- lm.df$coefficients[2]/se.b > t.cal x 7.789621 > > > pt(t.cal, df.res, lower.tail = F)*2 x 2.157284e-09 > pf(f.cal, df.reg, df.res, lower.tail = F) [1] 2.157284e-09 > > # see also > t.cal x 7.789621 > t.cal^2 x 60.67819 > f.cal [1] 60.67819 > >
